Place of Origin:
china
Brand Name:
RC
Certification:
ce, cb, fcc, uL, ROHS
Model Number:
AE J1772

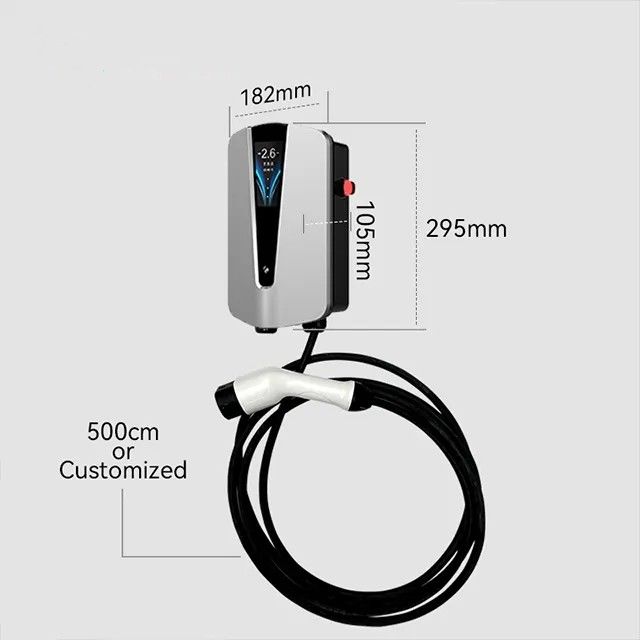

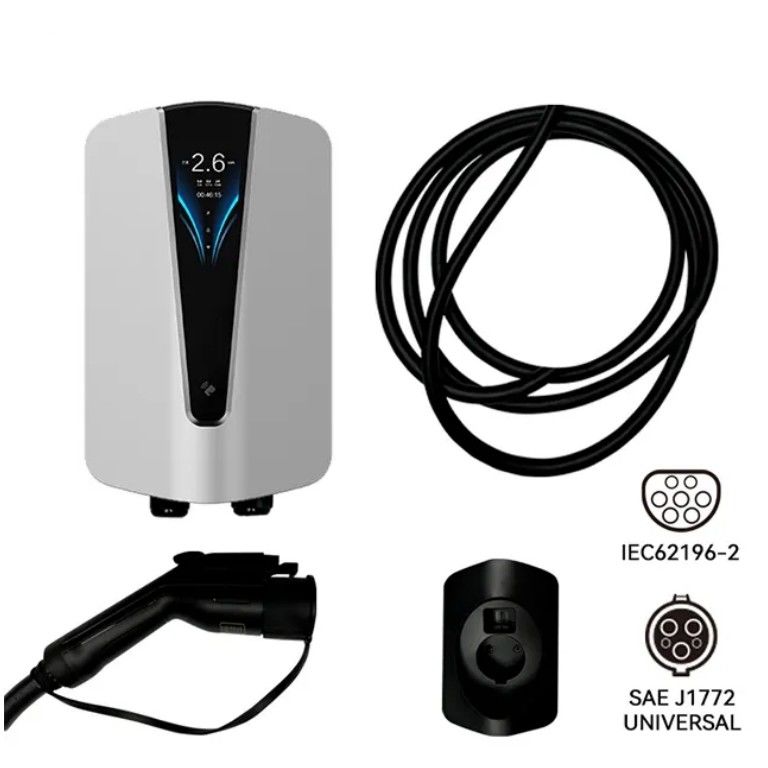

European Standard 22V 7kw Type2 Wall Mounted EV Charging Station Fast Charger
Features
European Standard 22V 7kw Type2 Wall Mounted EV Charging Station Fast Charger
Specification
| Type | European Standard 22V 7kw Type2 Wall Mounted EV Charging Station Fast Charger |
| Operating temperature | -40~65℃ |
| Material | High flame retardant PC fuel |
| Rated Output Current | 32A |
| Rated Output Voltage | AC240V |
| Power Type | AC |
| Degree of Protection | IP65 |
| Cooling | Natural air cooling |
| Weight | 6.6kg |
| Customized Cable Length | Custimized |
| Start Mode | Plug&Play/RFID card/customized App |
| Emergency Stop | Yes |
| WIFI/Bluetooth | Optional |
| Password/Fingerprint | Optional |
Why Choose Us
1. 4000+ pcs weekly production capacity
2. Landing of multiple oversea projects
3. Strong R&D capability
4. International export certificates
5. Multilingual after-sales service
FAQ
What is your terms of payment?
A: western union, T/T, LC, Paypal
Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped
Can I order some samples? How long?
A: Yes, and usually 7-10 days to production and 7-10 days to express.
How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h, obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours
