Place of Origin:
china
Brand Name:
RC
Certification:
ce, cb, fcc, uL, ROHS
Model Number:
J17 72

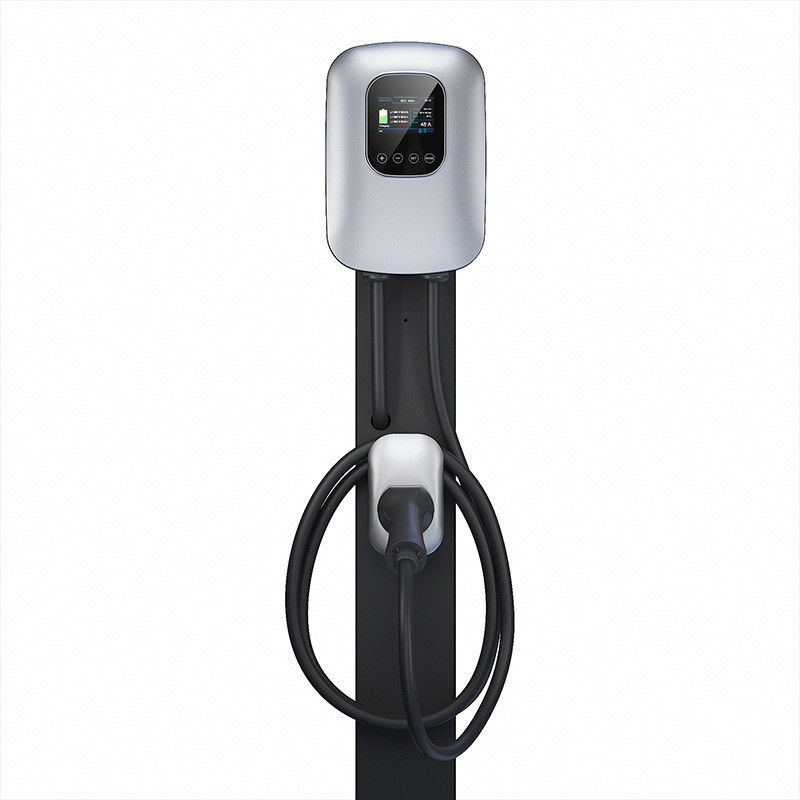

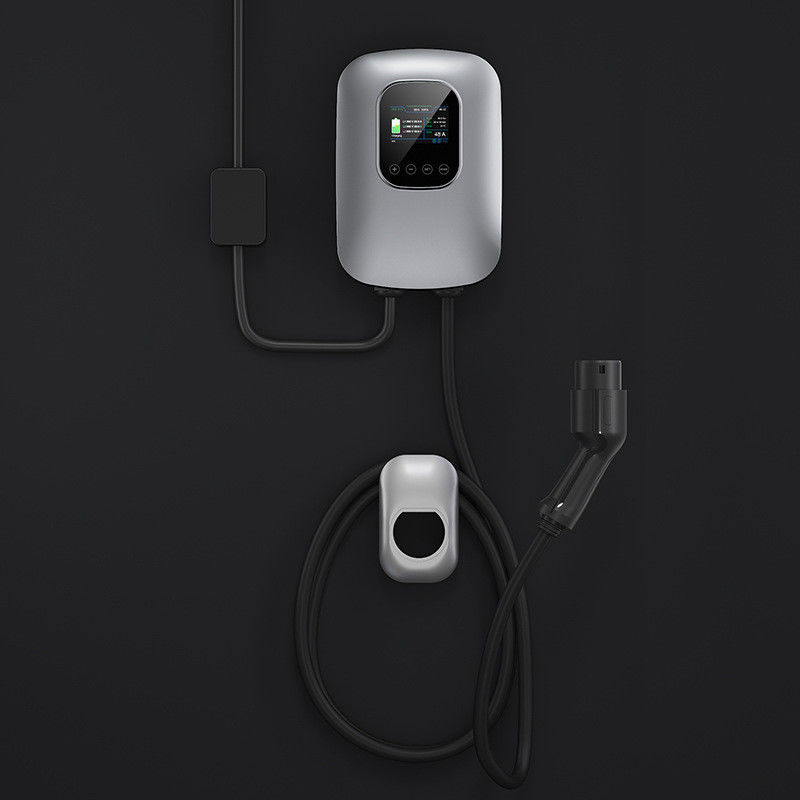

Support Bluetooth 50 To 60Hz Single Phase Type 1 EV Charger With FCC ETL RoHS
Product Description
1. Support Bluetooth 50 To 60Hz Single Phase Type 1 EV Charger With FCC ETL RoHS operates on a frequency range of 50-60Hz, allowing for compatibility with various power grids and electrical systems.
2. With a single-phase power supply, this charger provides efficient and reliable charging for Type 1 electric vehicles, making it suitable for residential or commercial charging applications.
3. Designed specifically for Type 1 electric vehicles, this charger offers a convenient and user-friendly solution, ensuring seamless charging experiences for owners of compatible vehicle models.
Specification
| Product | Support Bluetooth 50 To 60Hz Single Phase Type 1 EV Charger With FCC ETL RoHS | ||
| Model for 40A | RC-EV-096KUS-01C | RC-EV-096KUS-01C | RC-EV-7KEU-01CB |
| Input / Output Voltage | AC 110~240V/ Single phase | Input / Output Current | 8, 10, 12, 14, 16A, 20, 24, 28, 32A, 36A, 40A adjustable |
| Max Output Power | 9.6KW | Frequency | 50/60Hz |
| Input Cable | NEMA 14-50P/ 1M, hard-wired | Output plug | SAE J1772 (Type1) |
| Output Cable | 7.4M | Withstand Voltage | 2000V |
| Work Altitude | <2000M | Stand by | <3W |
| Protection | over voltage protection, over load protection, over-temp protection, under voltage protection, earth leakage protection, lightning protection, short circuit protection | ||
| Touch Button | Yes | LCD Screen | 3.5" |
| Current Adjustment | Yes | Timing / Appointment | Yes |
| Bluetooth APP cherging | Yes(Optional) | WiFi APP cherging | Yes(Optional) |
| RFID | Yes | Certification |
FCC, ETL, RoHS |
| Model for 48A | RC-EV-115KUS-01C | RC-EV-115KUS-01C | |
| Input / Output Voltage | AC 110~240V/ Single phase | Input / Output Current | 8, 10, 12, 14, 16A, 20, 24, 28, 32A, 36A, 40A adjustable |
| Max Output Power | 11.52KW | Frequency | 50/60Hz |
| Input Cable | NEMA 14-50P/ 1M, hard-wired | Output plug | SAE J1772 (Type1) |
| Output Cable | 7.4M | Withstand Voltage | 2000V |
| Work Altitude | <2000M | Stand by | <3W |
| Protection | over voltage protection, over load protection, over-temp protection, under voltage protection, earth leakage protection, lightning protection, short circuit protection | ||
| Touch Button | Yes | LCD Screen | 3.5" |
| Current Adjustment | Yes | Timing / Appointment | Yes |
| Bluetooth APP cherging | Yes(Optional) | WiFi APP cherging | Yes(Optional) |
| RFID | Yes | Certification | FCC, ETL, RoHS |
Factory Introduction
As an EV charging station OEM and ODM with 8 years of experience, we specialize in providing customized charging solutions for automakers and charging operators. Leveraging extensive industry expertise accumulated over the years, our product portfolio includes various commercial and residential chargers. We continuously innovate on technology to help customers build safe, smart and efficient charging networks. By choosing us, you gain access to one-stop customized charging services from design to production.
Why Choose Us
1. Landing of multiple oversea projects
2. 4000+ pcs weekly production capacity
3. Strong R&D capability
4. Multilingual after-sales service
5. International export certificates
