Place of Origin:
china
Brand Name:
RC
Certification:
ce, cb, fcc, uL, ROHS
Model Number:
EC 62196
Video

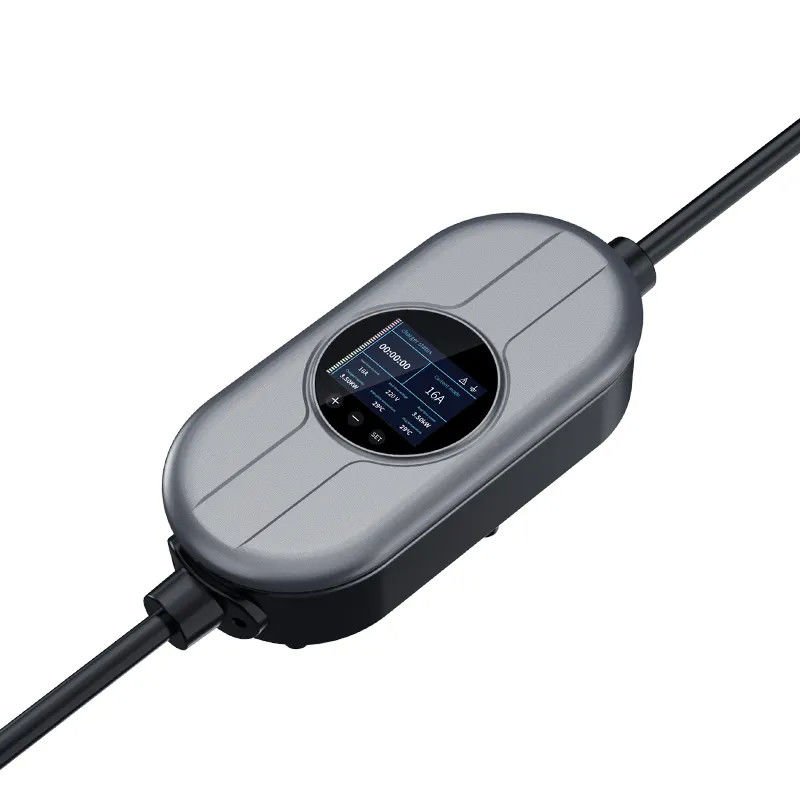

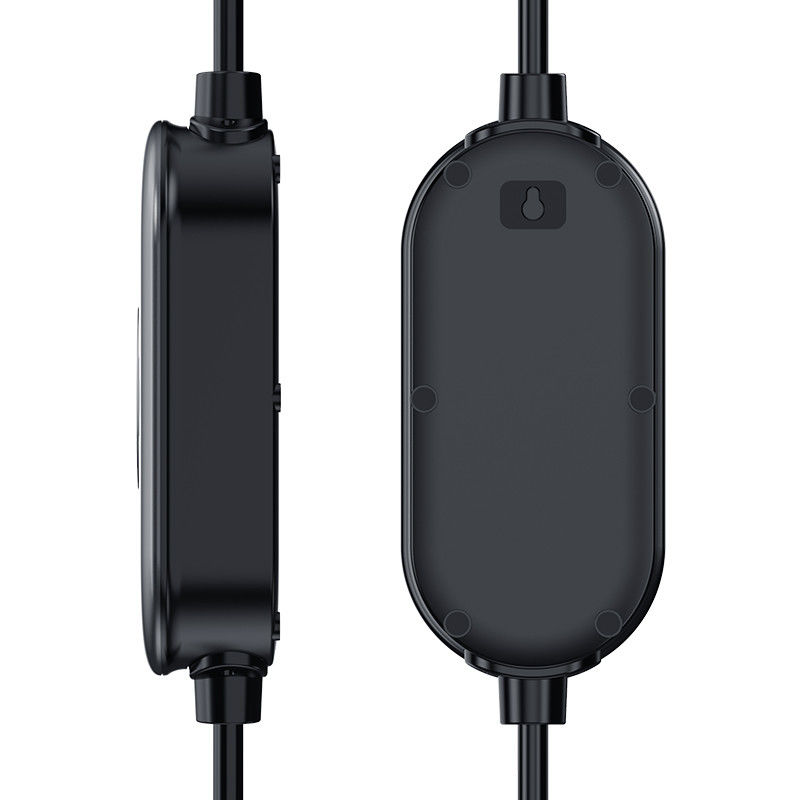

Plug And Charge SAE J1772 Plug 240V Portable EV Charging Station Customize Cable
Specification
| Name | Plug And Charge SAE J1772 Plug 240V Portable EV Charging Station Customize Cable | ||
| Type | RC-PEV-035KUS-01A | RC-PEV-070KUS-01A | |
| Rated Voltage | AC 110~240V/ Single phase | AC 110~240V/ Single phase | |
| Rated Current | 8, 10, 12, 14, 16A | 8, 12, 16, 20, 24, 28, 32A | |
| Max Output Power | 3.84KW | 7.68KW | |
| Frequency | 50/60Hz | ||
| Input Plug | NEMA 5-20P, NEMA 6-20P | NEMA 14-50P, SAE J1772 (Type1) | |
| Output Plug | SAE J1772 (Type1) | ||
| Withstand Voltage | 2000V | ||
| Work Altitude | <2000M | ||
| Standby Power | <3W | ||
| Protection | Over voltage protection, over load protection, over-temp protection, under voltage protection, Earth leakage protection, lightning protection, short circuit protection |
||
| LCD screen | Yes | ||
| Power adjustment | Yes | ||
| Touch Button | Yes | ||
| Timing / Appointment | Yes | ||
| Certification | FCC, ETL, Energy Star | ||
Product Description
1. Our Plug And Charge SAE J1772 Plug 240V Portable EV Charging Station Customize Cable features an SAE J1772 plug, ensuring compatibility with electric vehicles that utilize this widely adopted charging standard.
2. Operating at 240V, our portable EV charging station provides a reliable power supply for efficient charging, catering to the charging needs of various electric vehicle models.
3. Designed for portability, our portable EV charging station allows users to conveniently charge their vehicles wherever a 240V power source is available, offering flexibility and convenience on the go.
Factory Introduction
As a premier EV charging OEM/ODM exporter for 8 years, we deliver customized charging solutions tailored to worldwide requirements. Our end-to-end capabilities enable us to provide advanced charging products for diverse customer applications and segments. We continuously innovate and optimize our smart charging technologies to maximize efficiency, connectivity and intelligence. Partner with us for reliable, tailored charging products, from design and manufacturing to multi-language installation and maintenance globally.
Features
1. Fast Charging: Our car charging stations are equipped with advanced technology that enables fast charging, reducing the time required to charge electric vehicles significantly.
2. Compatibility: Our charging stations support multiple charging standards, including CCS, CHAdeMO, and Type 2, ensuring compatibility with a wide range of electric vehicles in the market.
3. Smart Connectivity: Our charging stations offer smart connectivity features, allowing users to monitor and control the charging process remotely through a smartphone app. Users can check charging status, adjust charging settings, and receive notifications.
4. Safety and Protection: Our charging stations prioritize safety with features like overcurrent protection, overvoltage protection, and short-circuit protection, ensuring a secure charging experience for both the vehicle and the user.
5. Durability and Weather Resistance: Our charging stations are built to withstand harsh weather conditions and are designed with durable materials, making them suitable for outdoor installations.
6. User-friendly Design: Our charging stations feature a user-friendly interface with clear instructions and intuitive controls, making them easy to operate for all users.
7. Scalability: We offer scalable solutions that can be expanded or upgraded to meet the growing demands of charging infrastructure, making it suitable for various applications, from residential settings to commercial and public charging stations.
