Place of Origin:
china
Brand Name:
RC
Certification:
ce, cb, fcc, uL, ROHS
Model Number:
EC 62196
Video

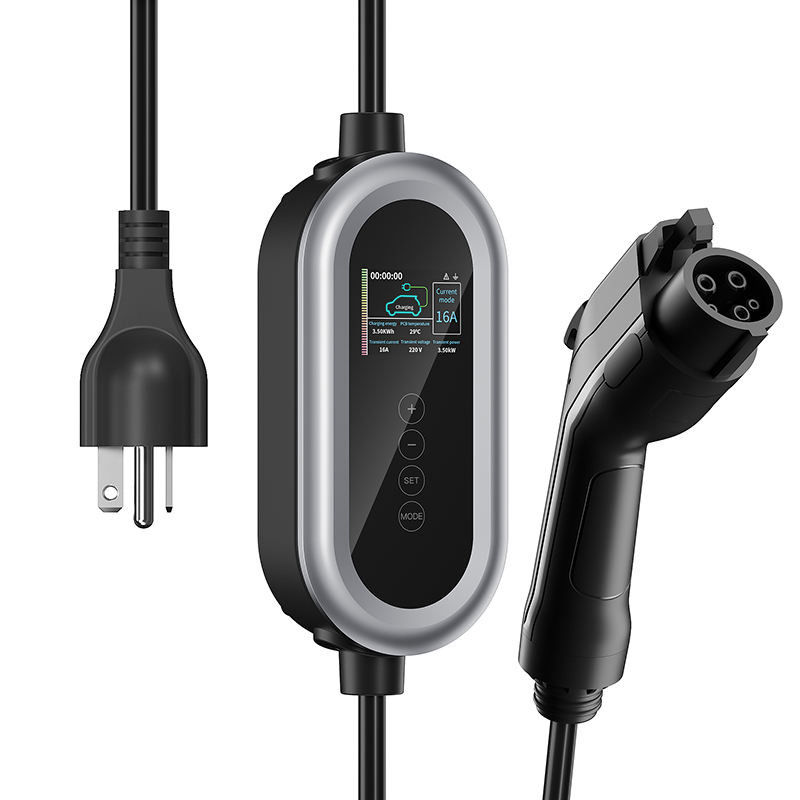

SAE J1772 7.4m Cable Adjustable Current Portable EV Charging Station With FCC
Specification
| Product | SAE J1772 7.4m Cable Adjustable Current Portable EV Charging Station With FCC | ||
|---|---|---|---|
| Model | RC-PEV-035KUS-01B | RC-PEV-070KUS-01B | RC-PEV-096KUS-01B |
| Input/Output Voltage | AC 110~240V/Single phase | AC 110~240V/Single phase | AC 110~240V/Single phase |
| Input/Output Current |
8,10,12,14,16A Adjustable |
8,10,12,14,16,20,24,28,32A Adjustable |
8,10,12,14,16,20,24,28,32A Adjustable |
| Max Output Power | 3.84KW | 7.68KW | 9.6KW |
| Frequency | 50/60Hz | ||
| Input Plug | NEMA 5-20P/NEMA6-20P | NEMA 5-20P/NEMA6-20P | |
| Output Plug | SAE J1772(Type1) | ||
| Output Cable | 7.4M | ||
| Withstand Voltage | 2000V | ||
| Work Altitude | <2000M | ||
| Standby | <3W | ||
| Protection | Over voltage, Overload, Over-temp, Under voltage, Earth leakage, Lightning, Short circuit | ||
| IP Level | IP65 | ||
| Touch Button | Yes | ||
| LCD Screen | Yes | ||
| Current Adjustment | Yes | ||
| Timing / Appointment | Yes | ||
| Certification | FCC, ETL, Energy star | ||
Product Description
1. SAE J1772 7.4m Cable Adjustable Current Portable EV Charging Station With FCC features an SAE J1772 connector, ensuring compatibility with a wide range of electric vehicles.
2. It offers the flexibility of adjustable current, allowing users to customize the charging rate based on their needs and available power supply.
3. This portable charging station provides convenient and reliable charging on the go, making it ideal for travel or locations without dedicated charging infrastructure.
Factory Introduction
With 8 years as a leading EV charging OEM and ODM, we provide tailored charging products and complete solutions globally. Our expertise enables us to engineer and manufacture high-quality AC and DC chargers for any application. We continuously innovate our smart charging technologies for maximum efficiency, connectivity and intelligence. Partner with us for end-to-end customization, from design and production to deployment, operation and multi-lingual support.
Support and Services
1. Power capacity: We can adjust the charging power to meet the specific demands of the application scenario, ensuring optimal charging times and compatibility with various vehicle types.
2. Charging interfaces: Our solutions can be customized to support different charging interface standards, such as CCS, CHAdeMO, Type 2, and more, based on the specific requirements of the application scenario.
3. Network connectivity and smart features: We offer customization options for network connectivity, enabling remote monitoring, data analysis, payment integration, and other smart features that enhance the charging experience.
4. Physical design and installation: Our charging stations can be customized in terms of physical design, allowing flexible installation options such as wall-mounted, pedestal, or ground installation, tailored to the space constraints of the application scenario.
5. Safety and certifications: We prioritize safety and can incorporate specific safety features and obtain relevant certifications based on the safety standards and regulations applicable to the application scenario.
